INLINE UV CURING OVENS
Inline Compact UV Curing Ovens
UV Curing Oven Series
Conformal Coatings, Adhesive Glues, and UV Curable Inks
The Anda UV curing oven series is the most powerful compact inline high intensity Ultraviolet (UV) curing oven system in the industry. It is capable of exceeding the maximum UV intensity requirements for curing virtually any UV curable product on the market today. In a class of its own, the system cost is also more affordable than rivaling products offered by competitors.
The inline UV curing oven series is available in LED for UVA LED curable coatings or Mercury Long-Arc for high intensity, rapid curing of UV curable coatings, adhesives, and inks. Closed-loop supply air ensures every substrate receives the same amount of cooling UV wavelength tailored to the ink, coating, or adhesive formulation.
The inline UV curing system was designed with enhanced safety protection to ensure operator protection from harmful UV radiation. The systems SMEMA communication and touch screen control interface integrates into new or existing factory automation lines or can also be used stand-alone. Pairs seamlessly with selective conformal coating spraying systems and does not interfere with wireless networks.
Inline Compact UV Curing Ovens
UV Curing Oven Series
Conformal Coatings, Adhesive Glues, and UV Curable Inks
The Anda UV curing oven series is the most powerful compact inline high intensity Ultraviolet (UV) curing oven system in the industry. It is capable of exceeding the maximum UV intensity requirements for curing virtually any UV curable product on the market today. In a class of its own, the system cost is also more affordable than rivaling products offered by competitors.
The inline UV curing oven series is available in LED for UVA LED curable coatings or Mercury Long-Arc for high intensity, rapid curing of UV curable coatings, adhesives, and inks. Closed-loop supply air ensures every substrate receives the same amount of cooling UV wavelength tailored to the ink, coating, or adhesive formulation.
The inline UV curing system was designed with enhanced safety protection to ensure operator protection from harmful UV radiation. The systems SMEMA communication and touch screen control interface integrates into new or existing factory automation lines or can also be used stand-alone. Pairs seamlessly with selective conformal coating spraying systems and does not interfere with wireless networks.
UV Oven Models & Specifications
UV-2 LED Lamp Configuration & Description:
Dual arrays of LED lamps positioned above the conveyor for curing UVA curable conformal coatings or adhesive glues. UVA LED curing is for the top-side or under-side of an assembly if flipped/inverted.
| Transmission System | |
|---|---|
| Board / Pallet Width | 50-460 mm (1.96″ -18.11″) |
| Component Height | ± 100 mm (± 3.93″) |
| Conveyor Height | 900 ± 20 mm (35.43″ ± 0.79″) |
| Conveyor Construction | Aluminum alloy rail + stainless steel chain |
| Rail Chain | Stainless steel chain with 5 mm extended pin |
| Process Flow | L to R (Standard), R to L (Optional) |
| Conveyor Speed (XY) | 0.5 – 5 m/min |
| Convery Width Adjustment | Manual |
| Maximum Load | 4 kg (Standard), 10 kg (Optional) |
| Facility | |
| Standard Footprint | L 1500 x W 1137 x H 1460 mm (L 59.06″ x W 44.76″ x H 57.48″) |
| Weight | 460 kg |
| Power | Designed to operate at 380 VAC, 3 Phase, 20kVA When needed, available optional transformer for input voltages 208V or 480V |
| Rated Power | 7.0 kW |
| Exhaust | 12 m3/min at max power |
| Ventilation | 150 mm exhaust pipe connection |
| Lamp Configuration | Dual LED UVA Set lamps above conveyor |
| Interface | |
| Controller | PLC and touch screen |
| Exhaust Requirement | 11.33 m³/min (400 CFM) |
| Communication Protocols | SMEMA & IPC-CFX |
| LED Lamp Ultraviolet | |
| UVA Irradiation | up to 500 mW/cm² |
| UVA Wavelength | 365 nm (Standard), 395 nm (Optional) |
UV-2 Lamp Configuration & Description:
Dual mercury medium pressure long-arc lamps positioned above the conveyor for single side cure only (top-side or under-side of an assembly if flipped/inverted). The UV oven only utilizes one mercury lamp at a time but can switch between both allowing continual operation in the event that one lamp fails. This permits time for scheduled maintenance without need to immediately shut down production.
| Transmission System | |
|---|---|
| Board / Pallet Width | 50-460 mm (1.96″ -18.11″) |
| Component Height | ± 100 mm (± 3.93″) |
| Conveyor Height | 900 ± 20 mm (35.43″ ± 0.79″) |
| Process Flow | L to R (Standard), R to L (Optional) |
| Conveyor Speed (XY) | 0.5 – 5 m/min |
| Convery Width Adjustment | Manual |
| Maximum Load | 4 kg (Standard), 10 kg (Optional) |
| Facility | |
| Standard Footprint | L 1500 x W 1137 x H 1460 mm (L 59.06″ x W 44.76″ x H 57.48″) |
| Weight | 400 kg |
| Power | Designed to operate at 380 VAC, 3 Phase, 20kVA When needed, available optional transformer for input voltages 208V or 480V |
| Rated Power | 7.0 kW |
| Lamp Configuration | Dual UV lamps above conveyor |
| Interface | |
| Controller | PLC and touch screen |
| Exhaust Requirement | 11.33 m³/min (400 CFM) |
| Communication Protocols | SMEMA & IPC-CFX |
| Ultraviolet Irradiation | |
| UVA | > 500 mW/cm² |
| UVB | > 500 mW/cm² |
| UVC | > 100 mW/cm² |
UV-3 Lamp Configuration & Description:
One mercury medium pressure long-arc lamp above the conveyor for top side curing and another below the conveyor for bottom side curing. Coatings or adhesive glues on the top and bottom sides of an assembly are cured simultaneously within a single UV oven. This UV oven solution is mainly for highly viscous coatings or glues that are less likely to flow or move while inverted prior to being cured.
| Transmission System | |
|---|---|
| Board / Pallet Width | 50-460 mm (1.96″ -18.11″) |
| Component Height | ± 100 mm (± 3.93″) |
| Conveyor Height | 900 ± 20 mm (35.43″ ± 0.79″) |
| Process Flow | L to R (Standard), R to L (Optional) |
| Conveyor Speed (XY) | 0.5 – 5 m/min |
| Convery Width Adjustment | Manual |
| Maximum Load | 4 kg (Standard), 10 kg (Optional) |
| Facility | |
| Standard Footprint | L 1500 x W 1137 x H 1460 mm (L 59.06″ x W 44.76″ x H 57.48″) |
| Weight | 410 kg |
| Power | Designed to operate at 380 VAC, 3 Phase, 20kVA When needed, available optional transformer for input voltages 208V or 480V |
| Rated Power | 13.0 kW |
| Lamp Configuration | Single UV lamps above & below conveyor |
| Interface | |
| Controller | PLC and touch screen |
| Exhaust Requirement | 11.33 m³/min (400 CFM) |
| Communication Protocols | SMEMA & IPC-CFX |
| Ultraviolet Irradiation | |
| UVA | > 500 mW/cm² |
| UVB | > 500 mW/cm² |
| UVC | > 100 mW/cm² |
UV Curing Oven Features
Standard Features
- PLC touch screen control
- Edge carrying, variable speed pin chain conveyor
- Rail expansion compensation
- SMEMA communication protocol
- 100 mm top and bottom side component clearance
- Adjustable lamp intensity for long lamp life
- Advanced variable frequency power technology ensures stable UV output and reduces energy consumption
Optional Features
- UV LED for UVA LED curable coatings
- UV Mercury Long-Arc
- Dual lamps top cure only
- Top and bottom simultaneous cure
- Return conveyor beneath
Inline UV Curing System
Related Products
iCure Infrared Curing Oven Series
The Anda iCure is a compact, inline Infrared (IR) curing module suitable for high volume, rapid curing of heat curable coatings, adhesives and inks.

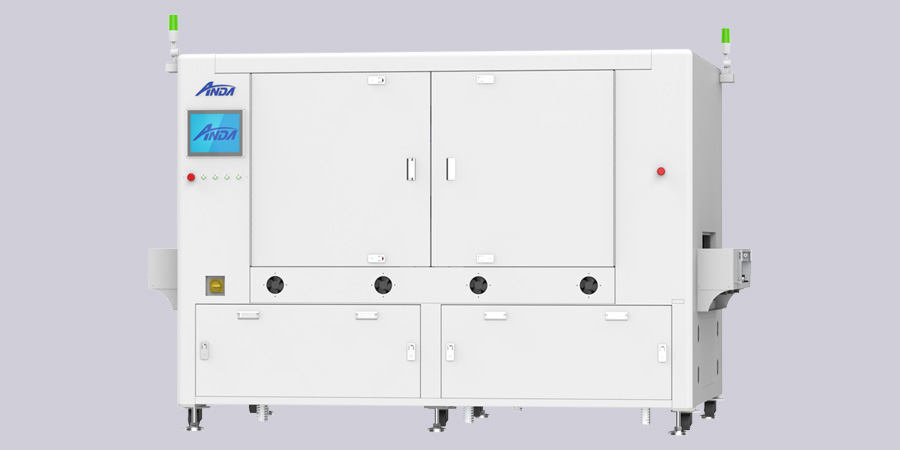

Vertical Curing Oven (VCO) Series
